Overview

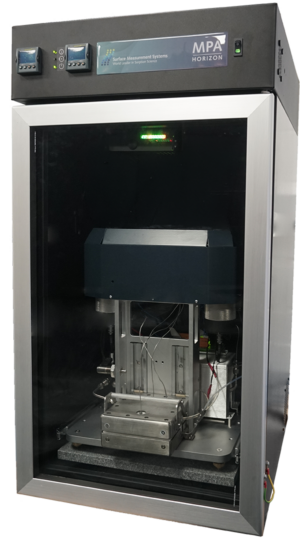

The Membrane Permeation Analyzer is a fully integrated cross-flow gas and vapor permeation system for high-precision measurement of barrier performance in membranes, films, and advanced materials. It enables simultaneous analysis of water vapor, organic vapors, and gases under controlled temperature, humidity, and pressure conditions.
This next-generation WVTR/CDTR/OTR analyzer measures key transport parameters, including permeability, transmission rate, diffusivity, and solubility, supporting real-time monitoring and low-permeability testing across packaging, energy, filtration, and material development applications.
Top-flight Benefits (KSPs)
Analyze complex mixtures of gases, vapors, and humidity simultaneously, providing a comprehensive understanding of material performance under varied conditions.
Monitor and analyze permeation kinetics over time to understand dynamic interactions and optimize materials for improved barrier properties.
Simulates varying temperatures, humidity levels, and organic compounds to predict material performance accurately in practical applications.
Determine OTR, WVTR, and permeation rates with high sensitivity for barrier materials and membranes.
TEMPERATURE RANGE:
TEMPERATURE STABILITY :
MASS RESOLUTION :
SAMPLE SIZE:
RH RANGE:
VAPOR/GAS CAPABILITY :
WVTR Measurement:
TEMPERATURE RANGE:
5 °C to 60 °C
TEMPERATURE STABILITY :
± 0.1 °C
MASS RESOLUTION :
±0.1% RH
SAMPLE SIZE:
• Standard width 11 cm • Thickness <0.5 mm
RH RANGE:
0%-98% RH
VAPOR/GAS CAPABILITY :
N₂, CO₂, He, O₂, Ar, & more
WVTR Measurement:
(80 cm₂) 0.05 – 500 g m-² day-¹
